Volkswagen · 2024–2026

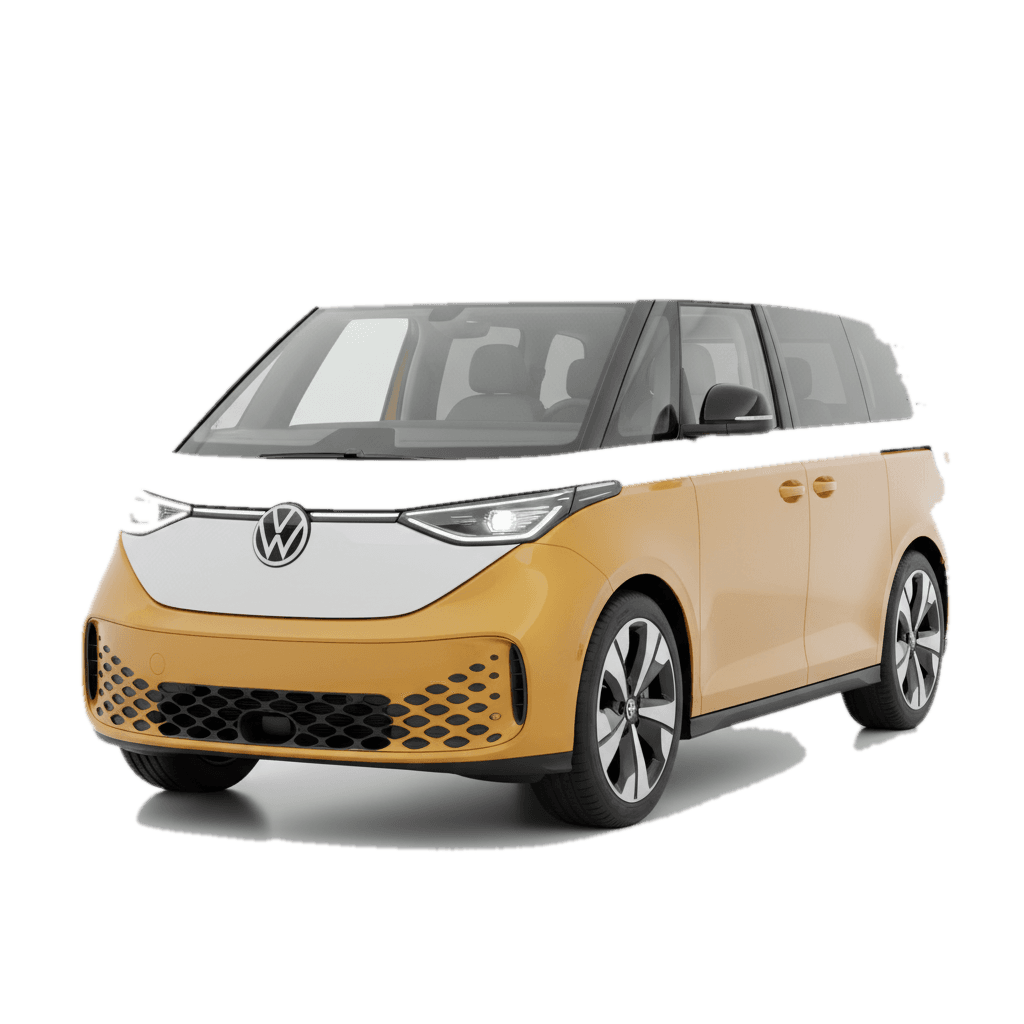

ID.Buzz Pro S
Electric van reimagined. Here's what its onboard charger actually needs from your home's electrical panel.
Home (Level 2) charging facts
Pulled straight from the ID.Buzz Pro S's onboard charger rating - not a generic EV number.
- Onboard charger draw
- 11 kW
- ~46A at 240V (kW × 1000 ÷ 240)
- Empty-to-full at max Level 2
- 8.3 hrs
- 91 kWh battery ÷ 11 kW
- Range added per hour
- ~30 mi/hr
- 11 kW × 2.7 mi/kWh efficiency
- DC fast charging
- 170 kW max
- Public chargers only - tapers as the battery fills
Typical full-speed install
48A charger on a 60A circuit
Reaches this car's 11 kW ceiling. Whether your panel has room for that circuit depends on everything else already on it - that's the actual assessment.
Connector
CCS
CCS (Combined Charging System) is the most common connector on non-Tesla EVs for both home Level 2 charging and public DC fast charging.
On the ID.Buzz Pro S specifically, that connector carries up to 11 kW at home on Level 2 and up to 170 kW on public DC fast hardware.
Charging speed by circuit size
The Volkswagen ID.Buzz's onboard charger can't use more than 11 kW AC no matter how big the circuit - past 48A, a bigger charger buys you nothing on this car.
| Charger setting | This car actually draws | Range added / hour | 8-hr overnight |
|---|---|---|---|
| 16A | 3.8 kW | ~10 mi | ~80 mi |
| 24A | 5.8 kW | ~16 mi | ~128 mi |
| 32A | 7.7 kW | ~21 mi | ~168 mi |
| 40A | 9.6 kW | ~26 mi | ~208 mi |
| 48A | 11.0 kWcapped by car | ~30 mi | ~240 mi |
Overnight, at full onboard speed
240 mi / 8 hrs
300 mi across a 10-hour window, at 11 kW.
Approximate cost to fill from empty
$11.83
Assumes $0.13/kWh (a national-average estimate, not your local rate) × 91 kWh - about $0.048/mile.
Volkswagen ID.Buzz charging questions
How long does it take to charge a 2024–2026 Volkswagen ID.Buzz Pro S on a Level 2 charger?
About 8.3 hours from empty to full at its 11 kW onboard-charger ceiling (91 kWh battery ÷ 11 kW).
Times scale with amperage - see the circuit-size table above for other settings.
What amperage does a Volkswagen ID.Buzz draw on Level 2?
At its full 11 kW rate, the Volkswagen ID.Buzz draws about 46A at 240V (kW × 1000 ÷ 240 = amps).
Can a Volkswagen ID.Buzz use a 48-amp charger?
Not to any real benefit. The Volkswagen ID.Buzz's onboard charger tops out at 11 kW (~46A) - a 48A charger doesn't charge it any faster than one already sized to 46A.
How much range does a Volkswagen ID.Buzz add per hour on a Level 2 charger?
About 30 miles of range per hour at its 11 kW ceiling (11 kW × 2.7 mi/kWh efficiency).
How much range does an 8-hour overnight charge add to a Volkswagen ID.Buzz?
Roughly 240 miles from an 8-hour overnight charge (30 mi/hr × 8 hours), or about 300 miles across a 10-hour window.
What's the DC fast charging ceiling for a Volkswagen ID.Buzz?
Up to 170 kW on a public DC fast charger - well above its 11 kW Level 2 (home) ceiling, though DC fast rates taper as the battery fills.
Other Volkswagen EVs
Will your panel handle this?
ChargeRight runs the full NEC load calculation against your actual panel - not a generic rule of thumb.
Check my panel$49.99 - results in minutes
