BMW · 2022–2026

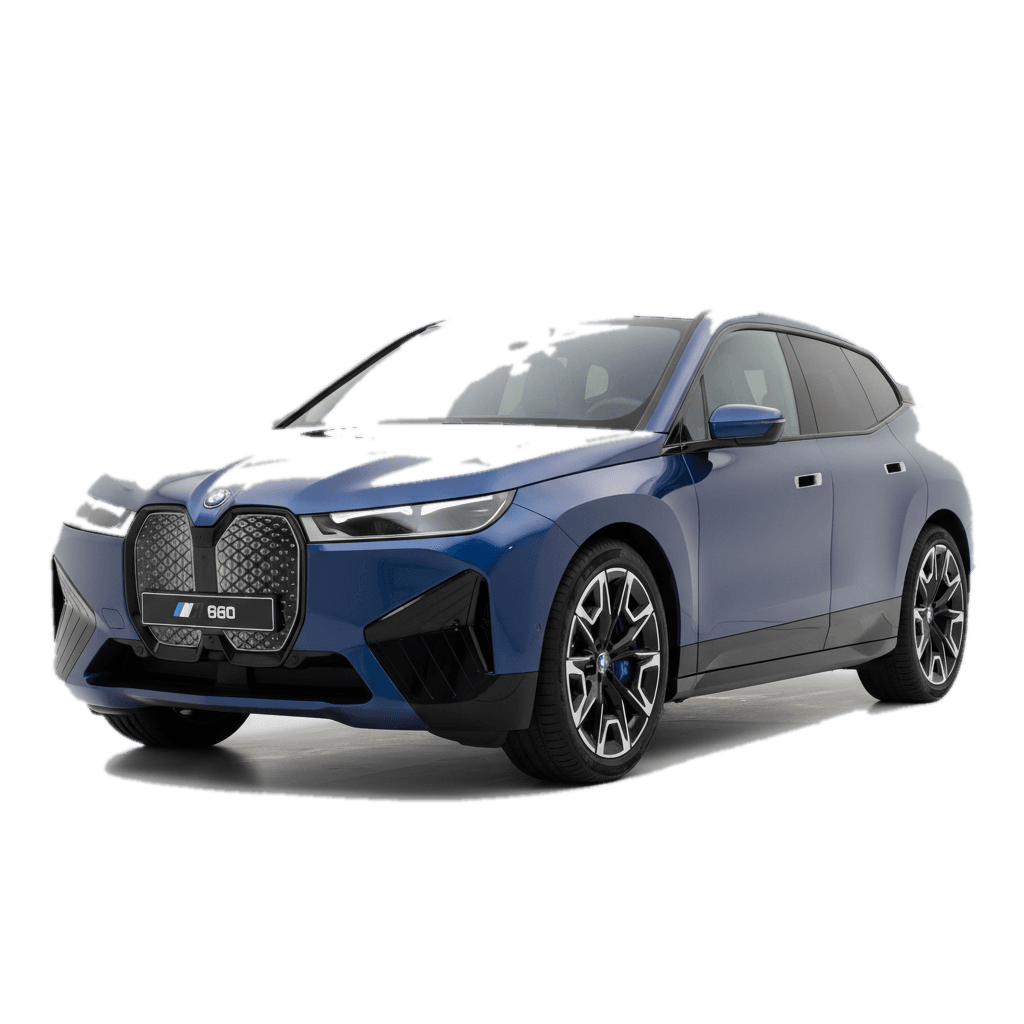

iX M60
610 HP electric performance. Here's what its onboard charger actually needs from your home's electrical panel.
Home (Level 2) charging facts
Pulled straight from the iX M60's onboard charger rating - not a generic EV number.
- Onboard charger draw
- 11 kW
- ~46A at 240V (kW × 1000 ÷ 240)
- Empty-to-full at max Level 2
- 10.1 hrs
- 111.5 kWh battery ÷ 11 kW
- Range added per hour
- ~29 mi/hr
- 11 kW × 2.6 mi/kWh efficiency
- DC fast charging
- 200 kW max
- Public chargers only - tapers as the battery fills
Typical full-speed install
48A charger on a 60A circuit
Reaches this car's 11 kW ceiling. Whether your panel has room for that circuit depends on everything else already on it - that's the actual assessment.
Connector
NACS
NACS (North American Charging Standard, originally Tesla's plug) is now the connector most new EVs are shipping with for both home Level 2 and public DC fast charging.
On the iX M60 specifically, that connector carries up to 11 kW at home on Level 2 and up to 200 kW on public DC fast hardware.
Charging speed by circuit size
The BMW iX's onboard charger can't use more than 11 kW AC no matter how big the circuit - past 48A, a bigger charger buys you nothing on this car.
| Charger setting | This car actually draws | Range added / hour | 8-hr overnight |
|---|---|---|---|
| 16A | 3.8 kW | ~10 mi | ~80 mi |
| 24A | 5.8 kW | ~15 mi | ~120 mi |
| 32A | 7.7 kW | ~20 mi | ~160 mi |
| 40A | 9.6 kW | ~25 mi | ~200 mi |
| 48A | 11.0 kWcapped by car | ~29 mi | ~232 mi |
Overnight, at full onboard speed
232 mi / 8 hrs
290 mi across a 10-hour window, at 11 kW.
Approximate cost to fill from empty
$14.50
Assumes $0.13/kWh (a national-average estimate, not your local rate) × 111.5 kWh - about $0.050/mile.
BMW iX charging questions
How long does it take to charge a 2022–2026 BMW iX M60 on a Level 2 charger?
About 10.1 hours from empty to full at its 11 kW onboard-charger ceiling (111.5 kWh battery ÷ 11 kW).
Times scale with amperage - see the circuit-size table above for other settings.
What amperage does a BMW iX draw on Level 2?
At its full 11 kW rate, the BMW iX draws about 46A at 240V (kW × 1000 ÷ 240 = amps).
Can a BMW iX use a 48-amp charger?
Not to any real benefit. The BMW iX's onboard charger tops out at 11 kW (~46A) - a 48A charger doesn't charge it any faster than one already sized to 46A.
How much range does a BMW iX add per hour on a Level 2 charger?
About 29 miles of range per hour at its 11 kW ceiling (11 kW × 2.6 mi/kWh efficiency).
How much range does an 8-hour overnight charge add to a BMW iX?
Roughly 232 miles from an 8-hour overnight charge (29 mi/hr × 8 hours), or about 290 miles across a 10-hour window.
What's the DC fast charging ceiling for a BMW iX?
Up to 200 kW on a public DC fast charger - well above its 11 kW Level 2 (home) ceiling, though DC fast rates taper as the battery fills.
